Step 1
Attach 2 MTM Platforms to Fold Up Mechanism
Viewing instructions for Mini Dual
To Start:
Remove contents from package and locate the MTM Platform. Lay the MTM platform upside down on a flat surface. Pro Tip: Take the empty cardboard package and lay contents on top of box or on a blanket to prevent scraping the paint.

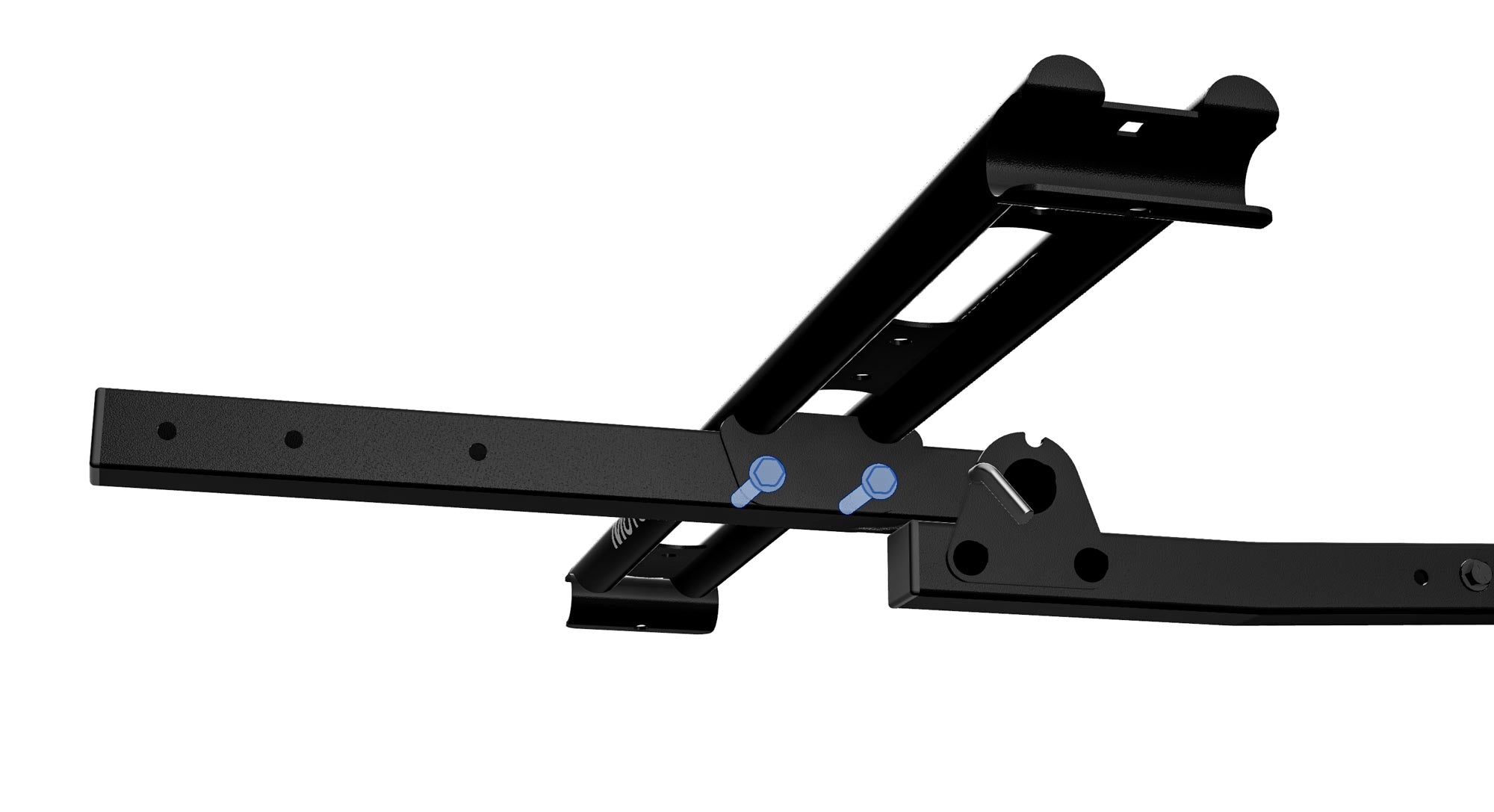

(A.) Align MTM Platform to Square Tube
Locate and place the square tube onto the MTM Platform and align the holes onto one end.

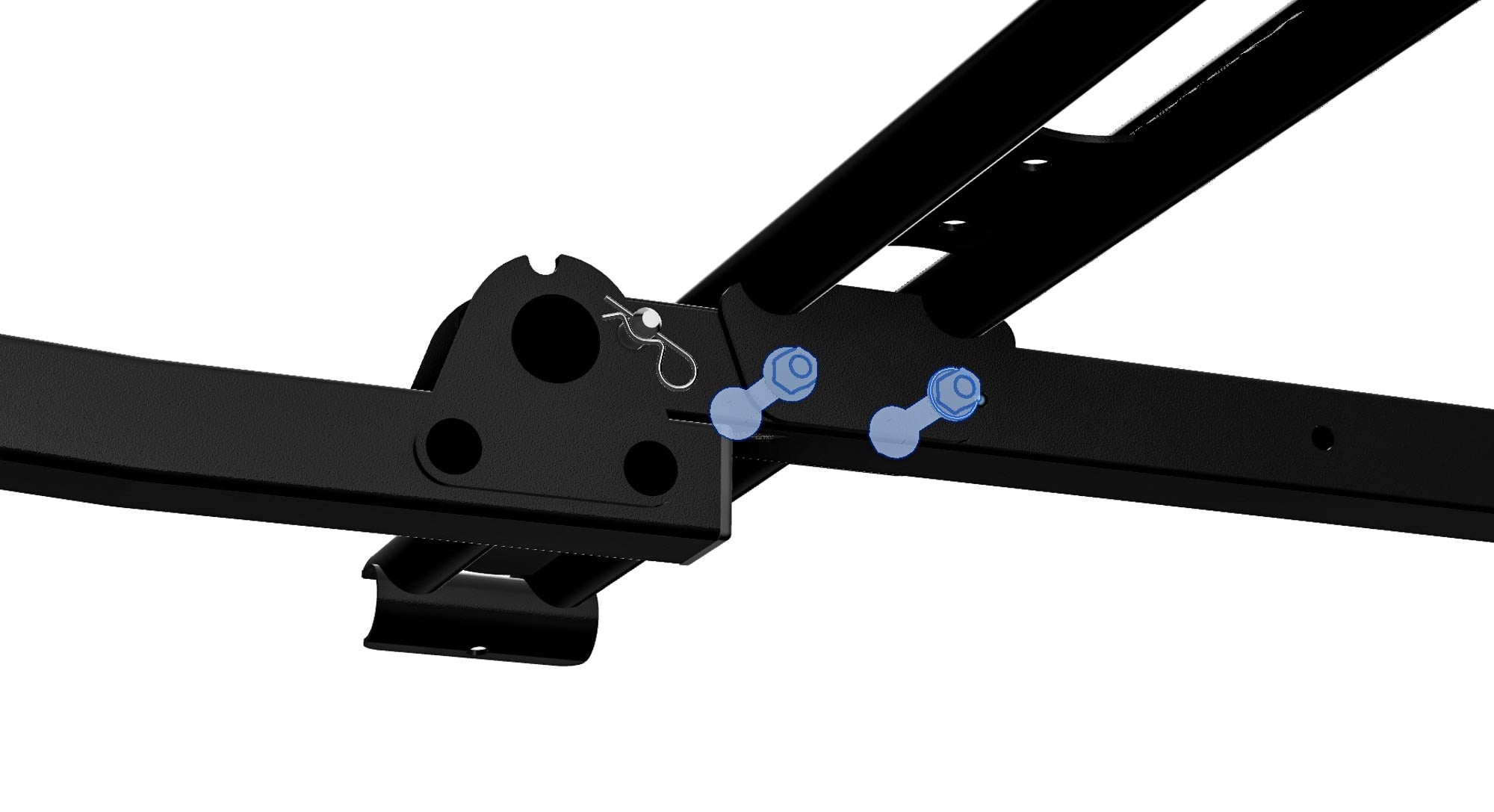

(B.) Attach Fold Up Mechanism to MTM Platform & Square Tube:
Locate the fold up mechanism and align holes with holes on MTM platform & square tube. Find the two big hex head bolts, two nuts, and four washers in the bag labeled "Mini DUAL Fold-Up Step 1B". Slide one washer on each bolt and guide them through the fold up mechanism, MTM platform and square tube. Place the remaining two washers on the other side and secure with the nuts.

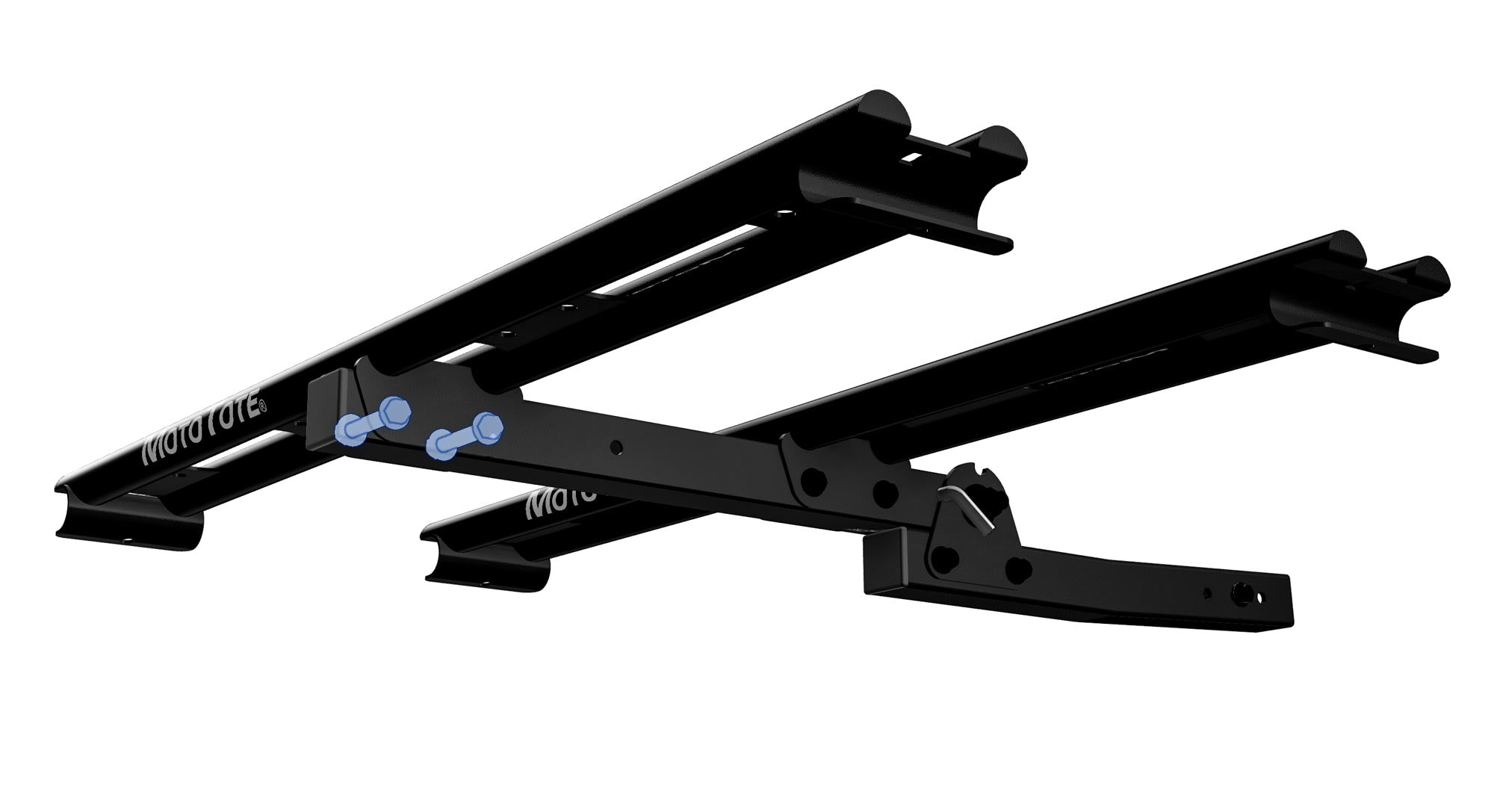

(C.) Attach 2nd MTM Platform to Square Tube
Slide the 2nd MTM platform onto the other end of square tube and align with the holes.Find the two big hex head bolts, two nuts, and four washers in the bag labeled "MotoTote Mini Platform Step 1". Slide one washer on each bolt and guide them through the platform.Place the remaining two washers on the other side and secure with the nuts.IMPORTANT: Tighten bolts on both MTM platforms until the side gaps are closed and the connection is tight. The bolt is only tightened when the gaps are fully closed, which will eliminate the platform from rocking back and forth. For geeks: Max torque 45 ft-lbs. but 25 ft-lbs. should be plenty
